As you know, Arduino Uno has only 2KB RAM and 32KB ROM. It is fine for simple project written by C or C++. However it is generally impossible to run major script languages.
I thought it may be possible to run mruby/c on Arduino.
I checked my mruby/c library for ESP32, then found despair...

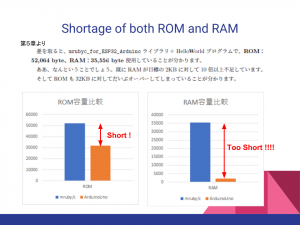

ROM and RAM requirement
I decided to hack mruby/c to run itself on Arduino Uno.
Basic strategy
- Footprint first
Performance doesn't matter. - Limit functionality
Some basic functionality will not be implemented in order to reduce ROM and RAM. (I found a new question, "What makes Ruby?") - Reduce redundancy
Of course, redundancy shall be removed. - Utilize ROM as much as possible
Any data on RAM shall be examined for the possibility to move to ROM using PROGMEM.
Result
Finally I did it.

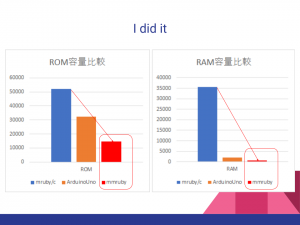

ROM and RAM usage
I can execute following Ruby code. I implemented the embedded Arduino class for testing.
puts "LED Test"
pin = 13
Arduino.pin_mode(pin,:OUTPUT)
st = :LOW
while(true) do
if(st==:LOW)
st=:HIGH
else
st=:LOW
end
Arduino.digital_write(pin,st)
Arduino.delay(500)
end

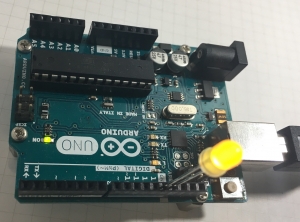

micro mruby on Arduino Uno
(mruby/c provides subset functions of mruby. My micro mruby provides subset functions of mruby/c. I have no idea if I can say "This is Ruby!" or not...)
Source code is here.
https://github.com/kishima/micro_mruby_for_arduino_uno
My first fanzine(Doujinshi)
I wrote a fanzine - I don't know a good word for Doujinshi in English - for the TechBookFest5(技術書典5), to describe detail of my idea with some sample code sets. I also introduced and explained mruby and mruby/c for micro processor boards.
I offered a cover picture to my friend. He provided great one! I really appreciate to him.
It was brilliant experience to write a book and sell it by myself. I think this is the best idea to learn something tech by writing a tech book.
If you want to know detail explanation and you can read Japanese, you can buy my fanzine pdf on BOOTH. Now it is available on Amazon!
